MED MINI REAR TRACKING SHIM SET

High quality stainless steel shims for the Mini rear radius arms, which can be inserted between the radius arm bracket (aka camber/tracking brackets) and the subframe, to adjust the rear tracking angles.

Inserting a shim will reduce the toe-in on that side, so you can evenly match tracking left to right and optimise the handling.

With different subframes and radius arms, this can vary quite significantly from one Mini to another, so it is well worth spending some time to get this set correctly.

We would highly recommend combining the MED shim pack with the Adjustable Rear Camber Brackets to give complete control over the rear suspension geometry.

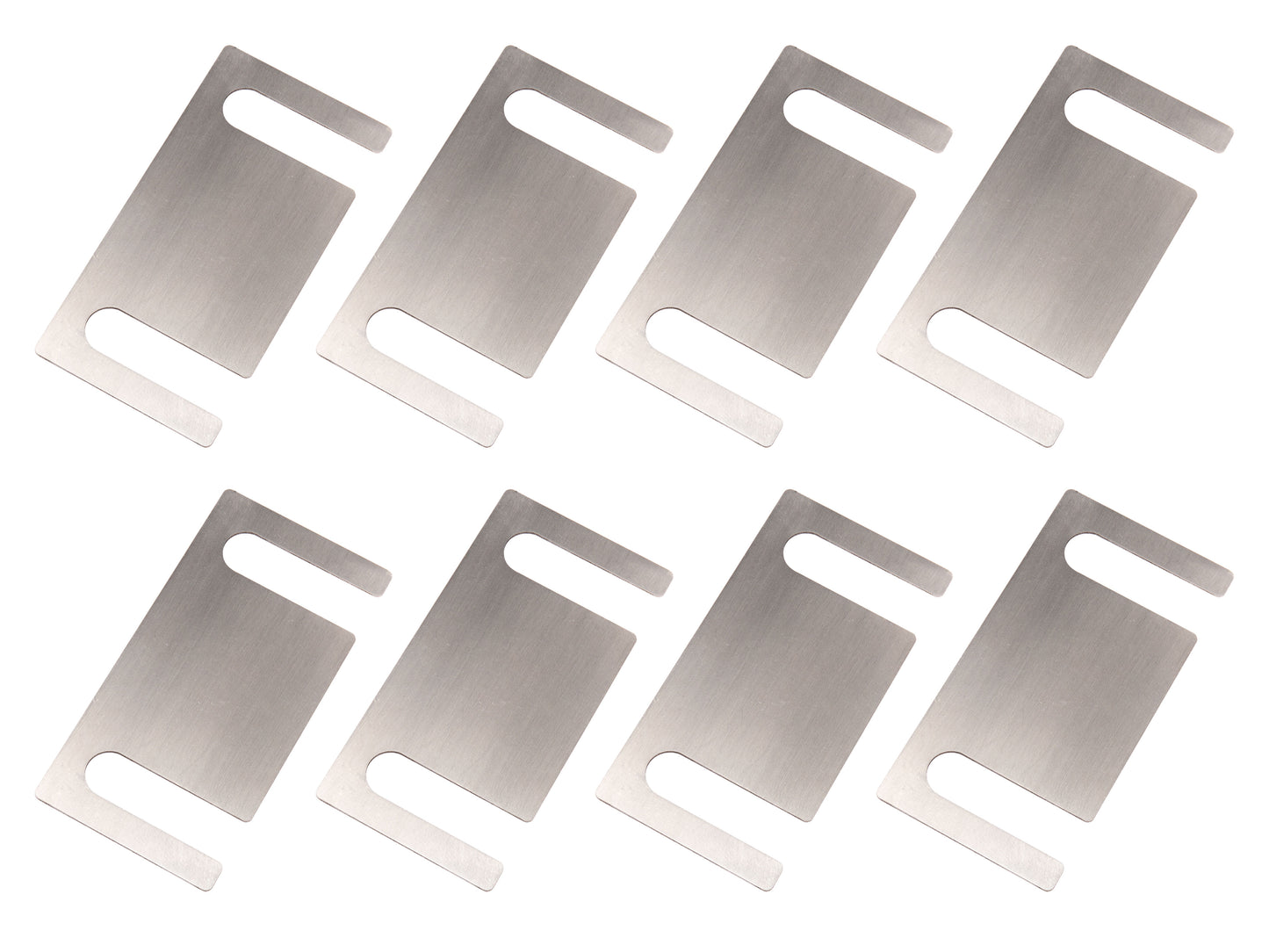

The set includes eight shims in total, half 0.5mm thick, half 0.9mm thick.

For reference, with 10-inch wheels this will reduce toe-in/increase toe-out by the same value, so 0.5mm or 0.9mm depending on the shim.

Also see the ADA Camber/Caster Gauge for precision suspension setup.
