CRANK POSITION SENSOR KIT - BELT DRIVE/TIMING COVER

Name: CRANK POSITION SENSOR KIT - BELT DRIVE/TIMING COVER
Brand: MED Engineering
SKU: MED-1402-CPSB
Price: 85.0 GBP
Availability: InStock

Part No: MED-1402-CPSB

£85.00 £70.83 EXC VAT

Sale

Product variants

Availability: In Stock

Description

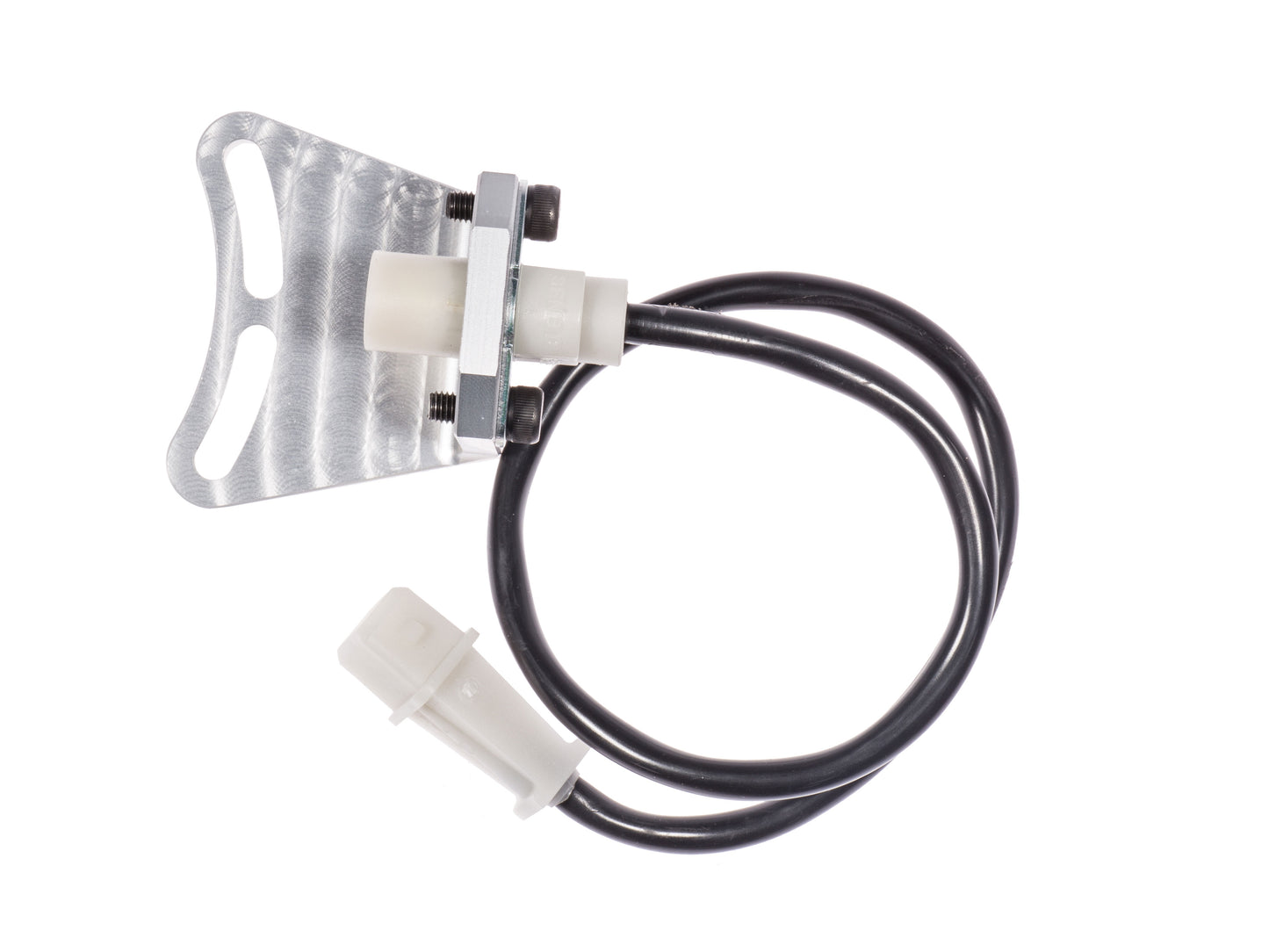

Our belt drive crank position sensor (CPS) pick-up kit includes a billet aluminium bracket mount and high quality sensor.

It's designed to fit directly to the MED Cambelt Drive conversion, the previous HTD design and also the MED Cam Timing Cover.

This is an essential kit for anyone upgrading to an engine management system, ignition-only or full fuel injection. The two-pin sensor works with the vast majority of aftermarket ECU systems.

We keep either Magnetti Marelli or Webcon sensors depending on availability, often referenced as SEN8D

For a suitable trigger wheel, see the MED Flat Management Pulley with 36:1 trigger wheel teeth.

Kit contents:

Magneti Marelli or Webcon crank position sensor

MED silver crank position sensor bracket

All fixings required

Frequently Asked Questions

Where does this fit on an A-Series engine?

This kit bolts to the lower edge of the MED Cambelt conversion or the MED billet alloy cam timing cover. For fitment to the standard timing cover, see part number MED-1402-CPS.

What else will I need to use this?

Aside from the obvious need for an ECU and appropriate wiring loom (try searching for MED-5950-DTA), this kit is designed to work alongside the MED (flat) management pulley, with 36:1 tooth pattern.

What type of wiring connection does the crank position sensor have?

This is a two-pin junior timer plug - one of the most common crank position sensor connections for aftermarket ECUs. Check that your ECU is compatible with a two-pin VR (Variable Reluctance) sensor.

How big should the gap be between the crankshaft pulley and the end of the sensor?

Check that this is between 0.5mm and 0.9mm. This should line up perfectly with the MED flat management pulley as supplied, but do check, as an incorrect gap here can cause running issues.
