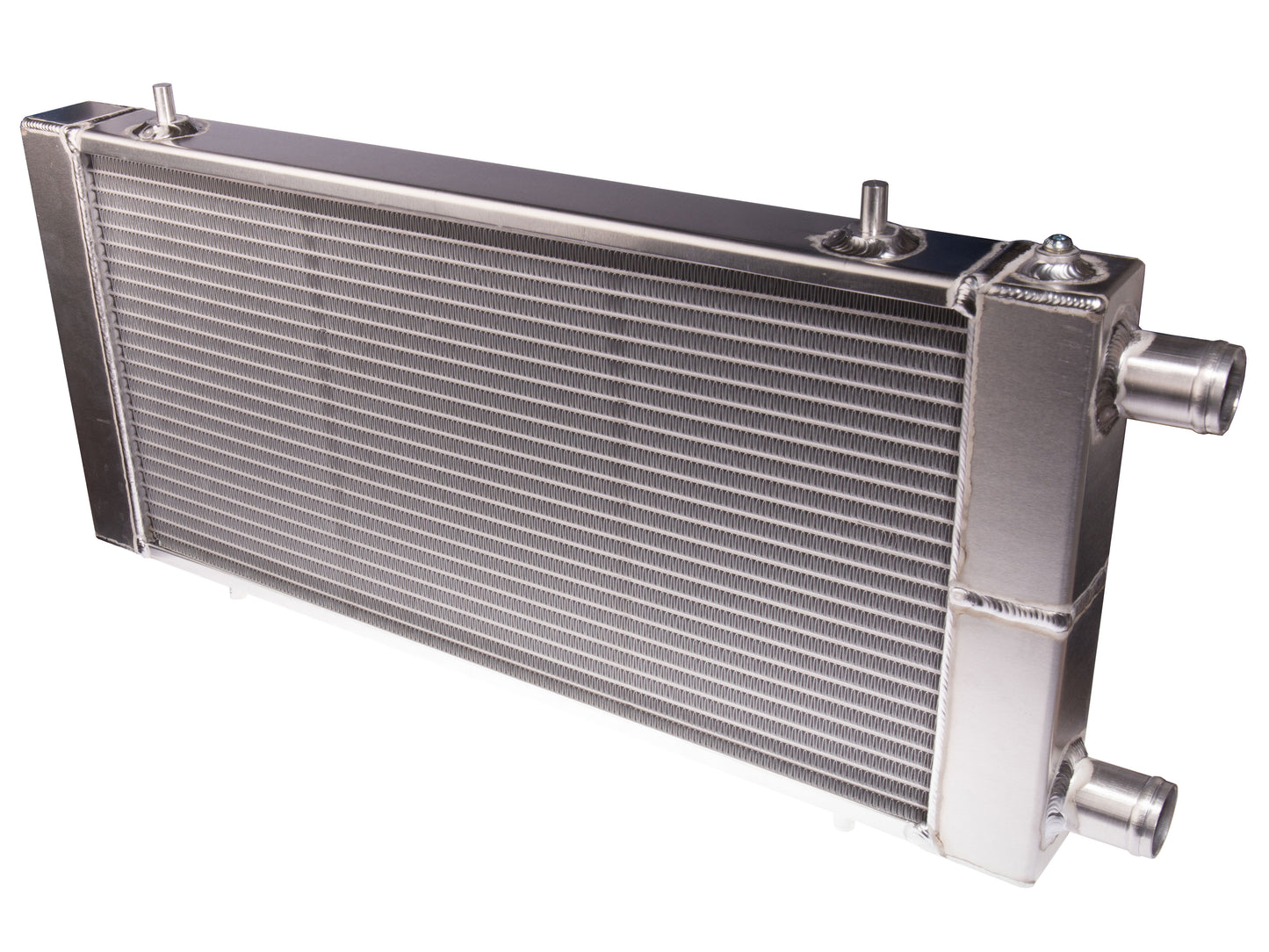

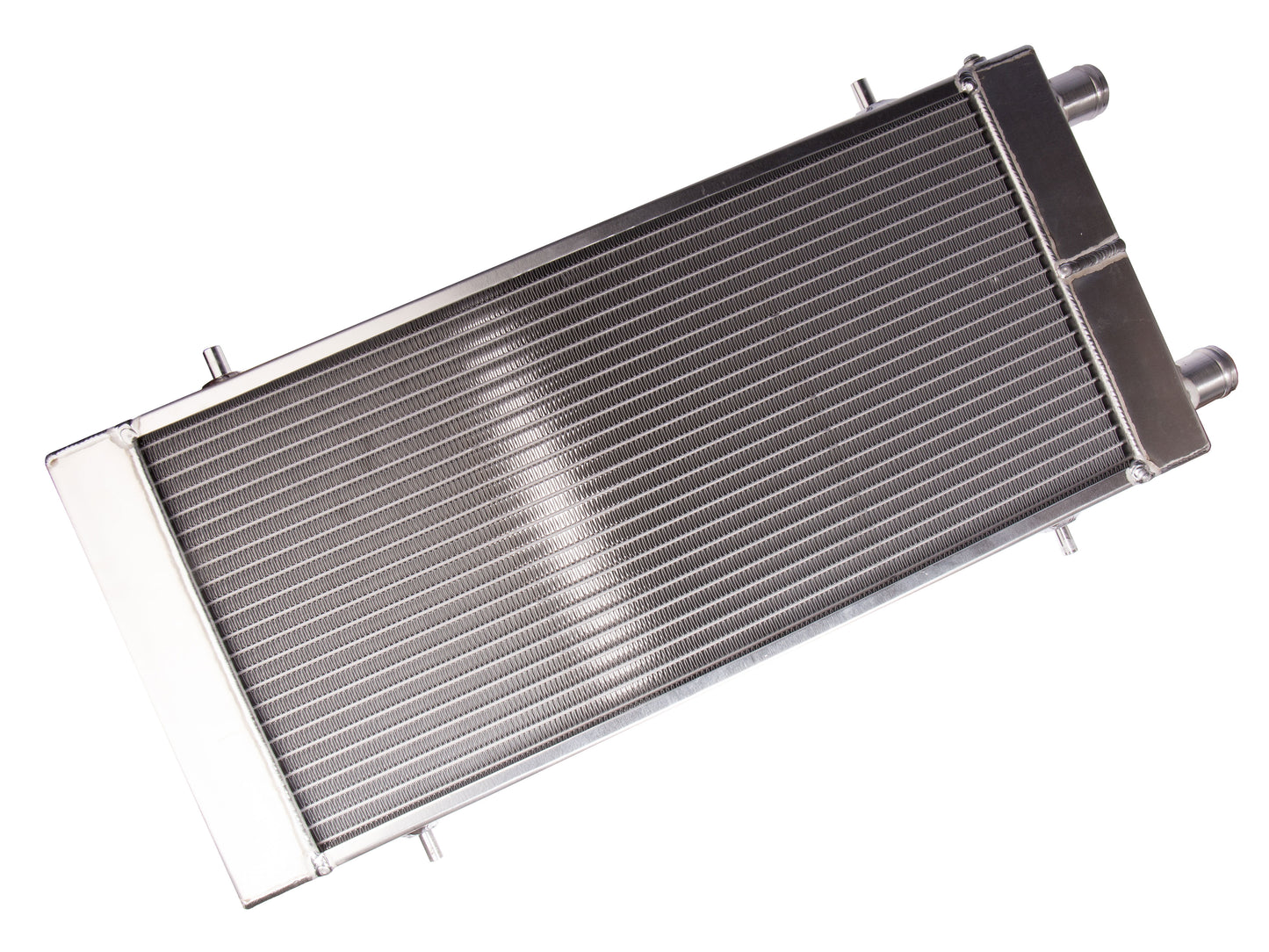

MED EXTREME FRONT-MOUNT RADIATOR

The MED Extreme front-mount radiator is a super efficient aluminium design that's popular within the Mini Se7en and Mini Miglia championship. These are also used to good effect in hillclimb, sprint and trackday Minis. If you're having cooling issues on your race Mini, try one of these.

Our radiators are professionally fabricated in the UK to a very high standard, with a large single-core design and 32mm inlet and outlet pipes. We keep all the silicone hoses you may require here: MED silicone radiator hoses. A large-bore thermostat housing and MED header tank might also be handy.

Twin mounting pins are welded to the top and bottom, for custom mounting to the front subframe.

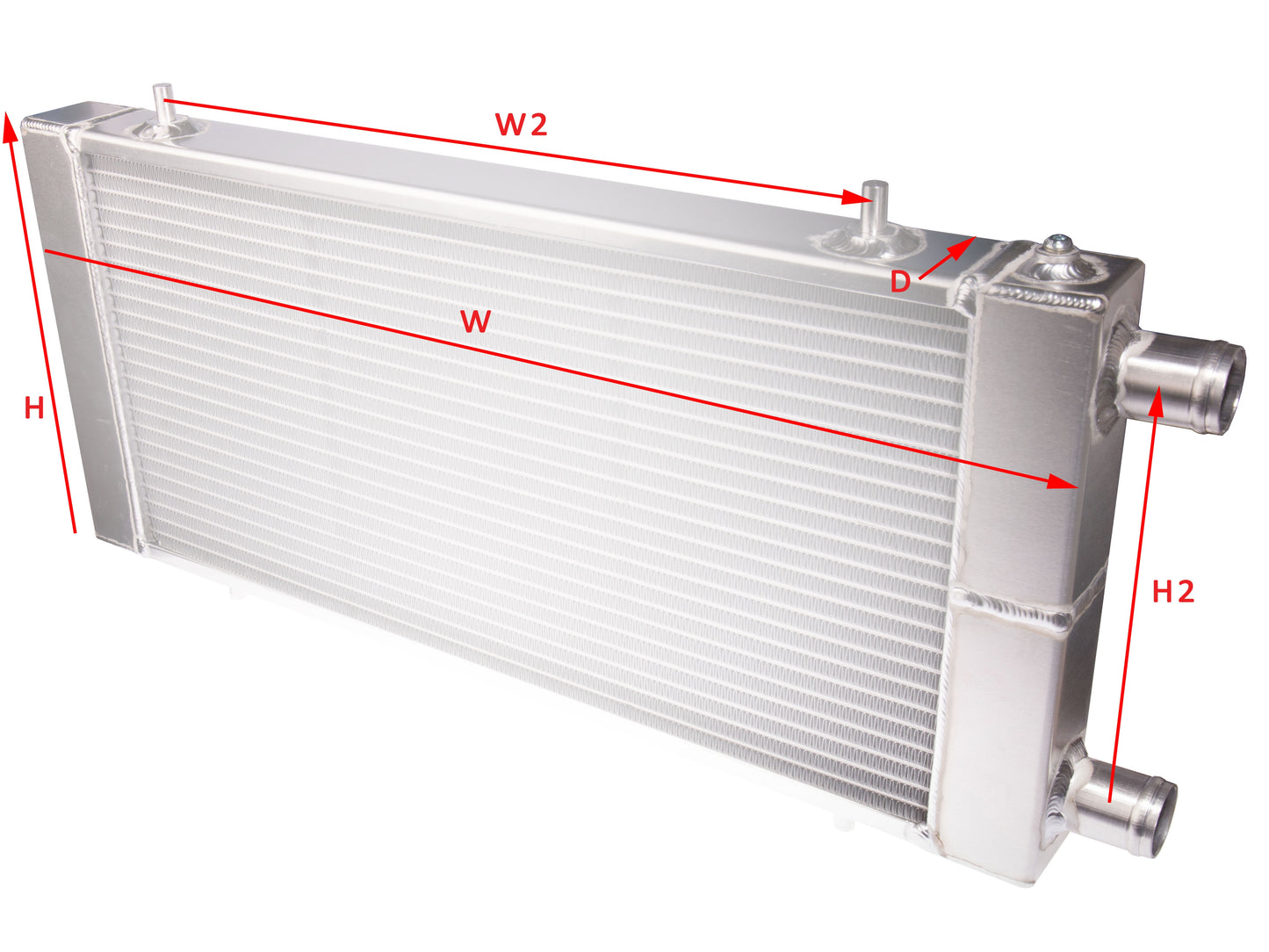

Dimensions

• Height - 260mm


• Width - 590mm


• Depth - 50mm


• Width between the pins - 410mm


• Height between top and bottom hoses - 90mm

Please note - this will be difficult to install with the original inner wings still in place, and the front panel will usually need to be trimmed for clearance, hence why we recommend these only for race use with a removable front end. Please contact us for further fitting advice if you're unsure.

Also see the MED electric coolant kit for a complete race Mini cooling system.
